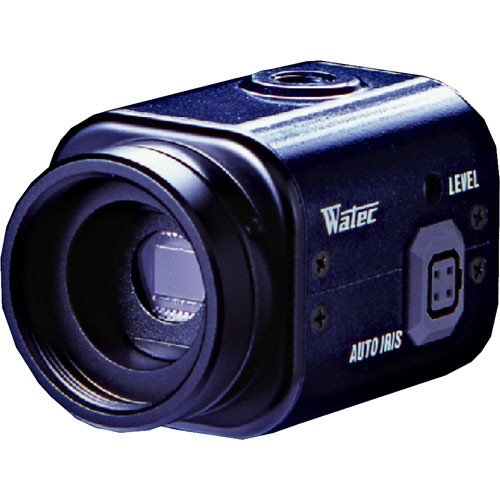

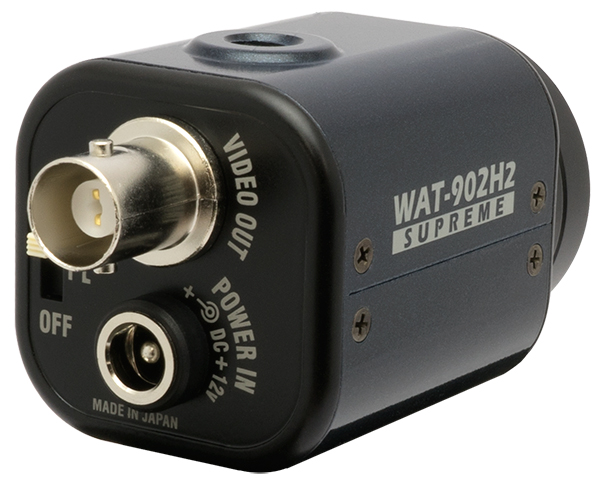

902H2 SUPREME EIA

Super High Sensitivity Adjacent to Near Infra-Red Ray BNC New auto iris connection

Super High Sensitivity Adjacent to Near Infra-Red Ray BNC New auto iris connection. This is our standard 902H series camera offered in the 1/2 CCD sensor.
Watec Cameras
C Lens:
0
CCD:
1/2
Resolution:
570
Power:
DC+12V±10% 12VDC
P-Supply:
AD901
Version:
NTSC/EIA
LUX:
0.0003 LuxF1.4 (AGC:High) 0.002 Lux F1.4 (AGC:Low)
SNR (S/N):
46dB
Shutter:
On: 1/60~1/100000 Auto: Off: 1/60sec
CLA View:
0
CSen/LFno:
440k
CSyn/LTyp:
Internal
Cagc/LFLnth:
High:5~50dB Low:5~32dB
Dimensions:
35.5x36x58
