902B EIA

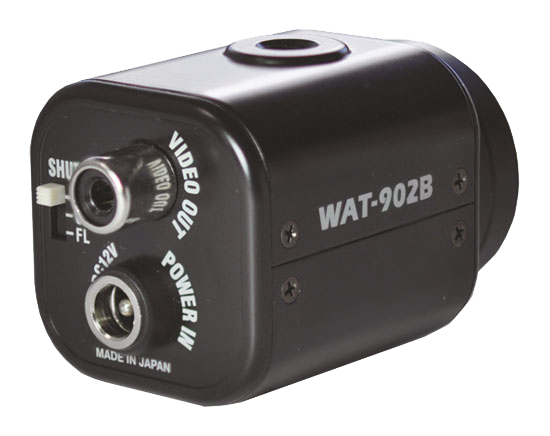

Watec's WAT-902B EIA is a high sensitivity camera great for medical imaging, science apps or astronomy.

This timeless, fairly low light monochrome 902 series camera has been a major part of our production lineup for over 15 years. Rated at 0.003LUX and offering 570TV Lines of resolution, the 902B has been a work-horse, standing the test of time, for Watec customers.

Number of total pixels: 811(H)×508(V) (EIA), 795(H)×596(V) (CCIR)

Lens mount: CS-mount

Weight Approx: 90g

Watec Cameras
C Lens:
0
CCD:
1/2
Resolution:
570
Power:
DC+12V±10% 12VDC
P-Supply:
AD901
Version:
NTSC/EIA
LUX:
0.003 LuxF1.4 (AGC:High) 0.01 Lux F1.4 (AGC:Low)
SNR (S/N):
50dB
Shutter:
On: 1/50~1/100000 Auto: Off: 1/50sec
CLA View:
0
CSen/LFno:
380k
CSyn/LTyp:
Internal
Cagc/LFLnth:
High:5~32dB Low:5~20dB
Dimensions:
35.5x36x58

Specifications and Manuals
